Component-Level Motherboard Diagnostics & Micro-Soldering in Lahore
When a modern workstation, gaming laptop, or business ultrabook suddenly dies, third-party repair centers routinely suggest replacing the entire motherboard assembly. This lazy approach incurs astronomical replacement costs and risks customer data loss. At IT Repair Hub, situated at IT Tower, Gulberg III, Lahore, our engineering laboratory specializes in precision Hardware & Chip-Level motherboard repairs. Instead of discarding an expensive multilayer PCB, our certified micro-soldering technicians isolate and replace individual defective integrated circuits, restoring original factory functionality at a fraction of the cost.

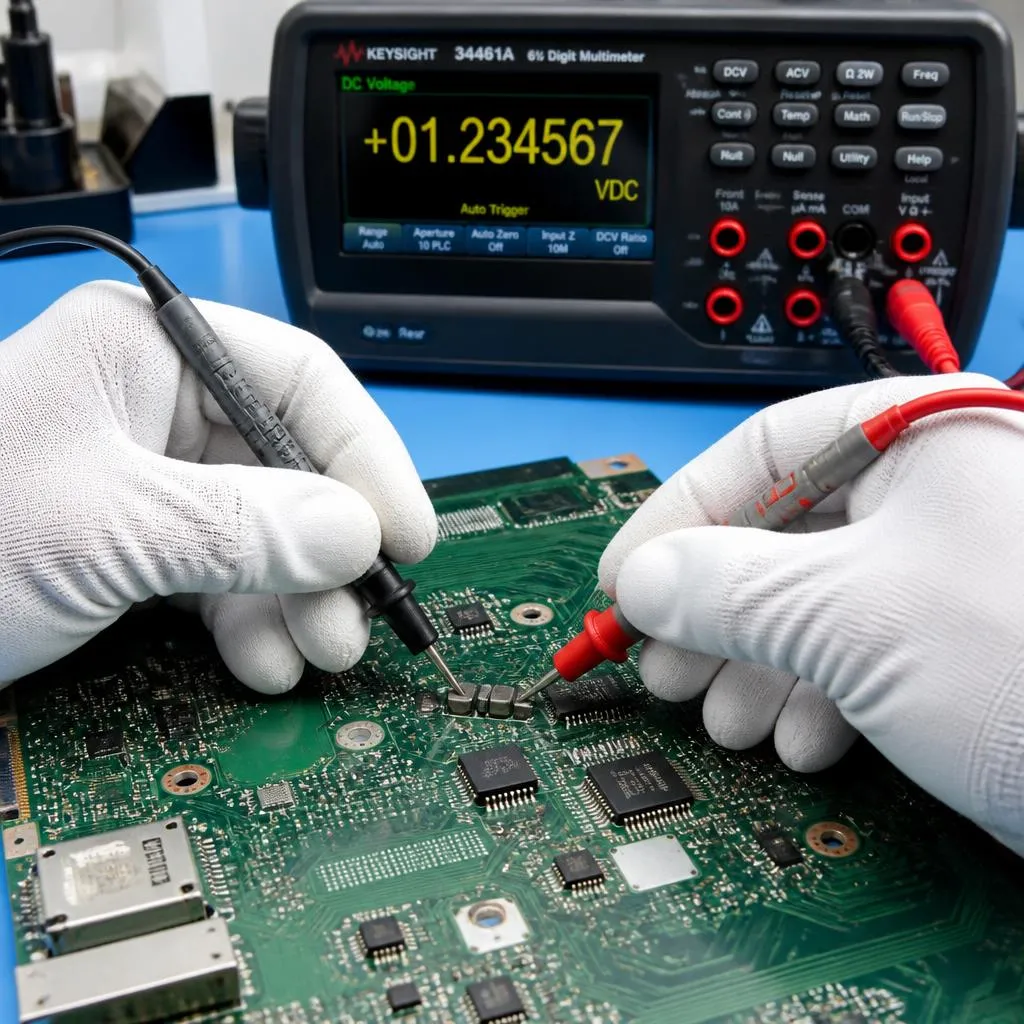

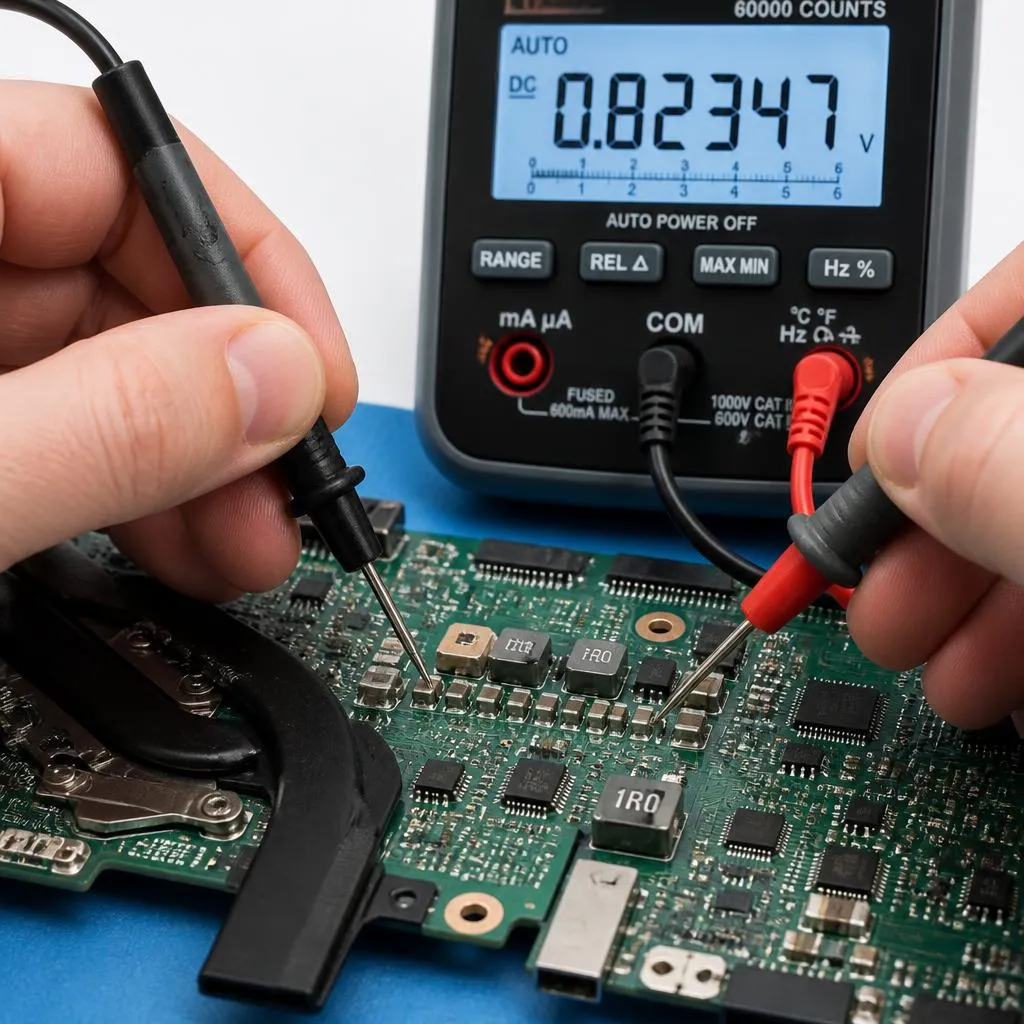

Modern computer hardware relies on high-density SMD (Surface Mount Device) architectures where hundreds of tiny power components share common voltage buses. A single shorted ceramic capacitor or blown input protection diode can pull down the entire 19V primary rail, rendering the device completely unresponsive. Conducting a dedicated Hardware & Chip-Level diagnostic trace enables our team to inspect board schematics, measure voltage drops across inductors, and replace only the damaged silicon components without compromising surrounding motherboard traces.
Root Causes of Critical Motherboard & Power Circuit Failures
Motherboard failures stem from subtle electrical, thermal, or chemical breakdown within the power delivery network. Rather than mechanical wear, these issues occur deep within microscopic silicon junctions and multilayer PCB copper traces.
Primary root causes of motherboard component breakdown include:
- Voltage Spikes and Dirty Power Ingestion: Unregulated power surges from faulty AC adapters pierce primary DC-in MOSFETs and destroy charging controller ICs.
- Overheating-Induced Thermal Fatigue: Prolonged CPU/GPU thermal throttling degrades solder joints under power-stage VRMs, triggering unexpected system shutdowns or No-POST states.
- Liquid Intrusion & Electrolytic Corrosion: Spilled liquids react with active voltage rails, creating conductive copper oxide bridges that burn through delicate power lines.
- Short-Circuited External I/O Ports: Mechanically damaged USB-C ports cause 20V power lines to bridge into sensitive 3.3V data lines, destroying the PCH or Embedded Controller (EC).
Our Laboratory Micro-Soldering and Circuit Rework Methodology
Rebuilding a damaged power rail requires industrial-grade rework equipment and deep circuit schematic analysis. Our bench engineers execute a controlled Hardware & Chip-Level workflow that isolates root causes without subjecting sensitive components to unnecessary thermal stress:
We begin by bench-testing the motherboard under a DC laboratory power supply equipped with digital ammeters to observe exact current draw patterns. Infrared thermal imaging cameras allow us to map localized hotspots on shorted power rails instantly. Technicians use stereoscopic optical microscopes, micro-tweezers, and temperature-controlled soldering irons to remove shorted MOSFETs, PWM controllers, or damaged BGA packages. After micro-soldering replacement components, we clean oxidized trace paths and apply UV-cured solder mask insulation. If your laptop requires screen replacements, structural rebuilding, or port repairs alongside board work, explore our full suite of laptop repairing services.
BIOS/EEPROM Firmware Flashing & Power Rail Validation
Not all hardware failures are purely electrical; corrupted SPI Flash memory chips can simulate severe motherboard faults, resulting in a black screen, continuous reboot loop, or missing display signals. Our engineers desolder the SPI EEPROM chip to read, repair, and rewrite raw binary files, clean the Intel ME/AMD PSP region, and realign embedded controller firmware during comprehensive Hardware & Chip-Level servicing.
Once power rails show correct voltage parameters, the system undergoes extensive electrical validation testing. We monitor current stability across CPU VCORE, DDR memory power rails, and GPU VRM phases under synthetic benchmarks. You can observe our real-world micro-soldering procedures, board repair breakdowns, and diagnostic case studies directly on the official IT Repair Hub Facebook Page.
Advanced Circuit Repair vs. Complete Motherboard Replacement
Choosing component-level repair saves valuable resources while preserving onboard encrypted data and original hardware serial configurations. Performing targeted Hardware & Chip-Level component replacement avoids the long wait times associated with sourcing hard-to-find import motherboards.
Avoid unnecessary motherboard replacement costs when your laptop fails to turn on. Visit IT Repair Hub Lahore today for transparent circuit diagnostics, expert micro-soldering, and reliable component-level restoration.
